用途及特點：該產品是由F級樹脂和高阻調料磨制而成，溶劑為甲苯，二甲苯?？梢栽偈覝叵赂稍铩Ｆ崮さ哪陀托?，耐熱性良好，由較高的機械強度和硬度，耐熱等級為F級，電阻非線性大(在高溫下電阻率低)適用于高壓電機，電器防電暈涂層。

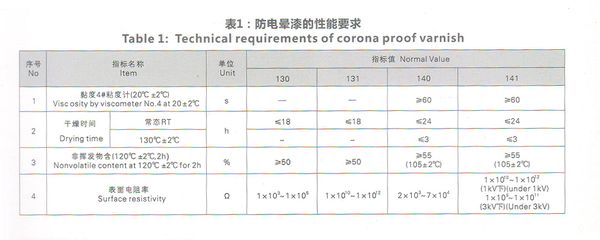

技術條件
外觀：涂為灰色液體，無外來雜質 干燥時間(23℃土2℃)：≤8h
固體含量：(105℃土2℃至恒溫)：≥55% 表面電阻率：109--1011
細度：≤40um
防電暈漆性能特點和用途
Characteristics and Application of corona-proof varnish
特點和用途:耐熱等級B級。干燥性好。用于高壓電機線圈槽部表面防電暈覆蓋層。
標準: Q/XB1014-2011
Characteritics and Application: Temperature cassification is B. Good drying property. Used for corona proof coating of the slot of coils for high voltage motors.
Standard: Q/XB1014- -2011
131高電阻環氧防電暈漆 Epoxy varnish with high resistance and corona proof
特點和用途:耐熱等級B級。干燥性好。用于高壓電機線圈端部表面防電暈覆蓋層。
標準: Q/XB1015- -2011
Characteristics and Application: Temperature classification is B. Good drying property .Used for corona-proof coating of the end of coils for high voltage motors.
Standard: Q/XB1015- -2011
140改性聚酯低阻防電暈漆Modified polyester varnish, low- resistance and corona -proof
特點和用途:耐熱等級F級。附著力強，耐磨性好。可直接在線棒表面使用。適用于60KV和10.5KV級高壓電機線圈或線棒槽部的防暈。
標準: Q/XB1091-2011
Characteristics and Application: Temperature classification is F. High adhesion and good wear -resistance. Used for the surface of bars directly as well as for
corona-proof treatment of motors' coils and slot of bars which voltage are 6kv and 10.5kv.
Standard: Q/XB1091-2011
141改性聚酯高阻防電暈漆Modified polyester varnish with high resistance and corona proof
特點和用途:耐熱等級F級。附著力強，耐磨性好?？芍苯釉诰€棒表面使用。適用于60KV和10.5KV級高壓電機線圈或線棒端部的防暈。
標準: Q/XB1091-2011
Characteristics and Application: Temperature lasificationis F. High adhesion and good wear resistance. Used for the surface of bars directly as well as for
corona-proof treatment of the end of motors' coils and end of bars which voltage are 6kv and 10.5kv.
Standard: Q/XB1091-2011
